PS/ABS/PC plastic plate sheet production line

Screw diameterPE/PP/PVC/PS/ABS Plastic Sheet/Plate Extrusion line

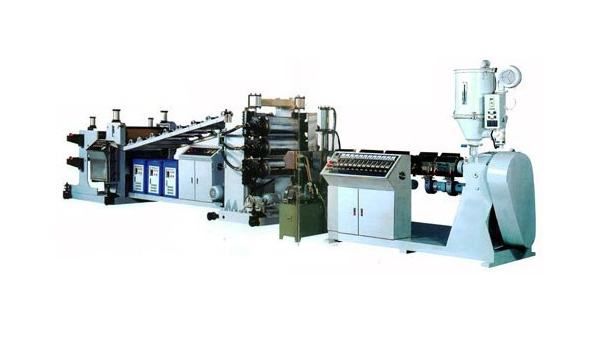

This pruducing line is used to make PVC,PET,PE,PS,ABS and other plastic material sheet and plate with the width of less than 3000mm and thickness of 0.15-20mm.WH-BP Serial sheet extrusion line is composed by screw extruder,three roll press-polishing machine,cooling shelf,haulf machine,cutter and stack.It can be adjusted to customers' order of specific material and capacity by changing the type of extuder and mould.

Main features:

1.specially designed screw has the virtue of fluxing plastic,color,and luster evenly and high output

2.precize temperature control and special moulds ensure accurate size of sheet.

3.the winder can automatically adjust the speed and tension and set the width of needed products freely.

4.the meter counter can set the length of the sheet.

specification of APET, PETG sheet extrusion line

Main extruder screw diameter120mm
120mm
Main extruder L/D33:133:1
motor power of main extruder132kw132kw
Co-extruder screw diameter60mm45mm
Co-extruder L/D33:130:1
motor power of co-extruder37kw24kw
Thickness of sheet0.2-1.4mm0.2-1.4mm
Width of sheet540-1460mm540-1460mm
output300-500kg/h300-500kg/h
actual  power consumed180kw165kw


Technical specification of PP, PS sheet extrusion and co-extrusion line

Screw diameter65mm-150mm
Screw L/D33:1
Power of motor30-250kw
sheet thickness range0.2-2mm
sheet width range400mm-2000mm
output100-1000kg
actual power consumed60% electrical installed power
