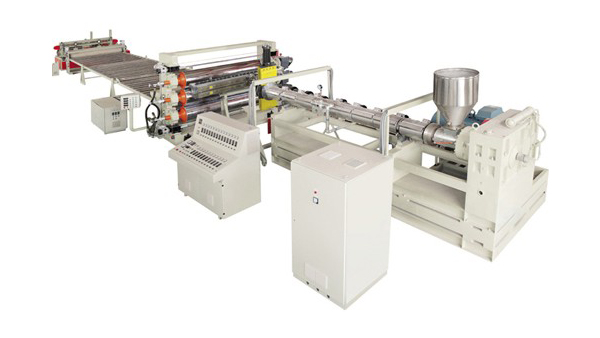

PETsheet machine

Application & Characteristic:

The screw is designed of special mixing function and high plasticization capacity.
The special designed T-type mould ensures a precise control to the thickness of the board.
The accurate temperature control (±1) can precisely control the plasticization process, thickness and smoothness of board.
The three-roller calendar adopts horizontal, vertical or 45°tilt type installation, with up-down lifting mode.
The thickness of board is controlled by screw and pressing roller in two directions.
The separate roller temperature control system can precisely control the pressing roller temperature to ensure a even thickness.
Cutting machine can cut the sheet with accurate length and quantity.
The winding device uses big torque motor, can freely regulate the winding speed and tension.
The automatic meter countering device can pre-set the length of the product.
This production line can be used to produce the PVC foamed inside spiral silent pipe after changing the mould


Technical Specification:

Screw diameter120mm
150mm170mm
Screw L/D ratio35:1
35:135:1
Power of motor132kw185kw280kw
Product thickness3-20mm8-50mm5-25mm
Product width1220mm1500mm2100mm
Output350kg/h500kg/h750kg/h
Practical power150kw200kw300kw
