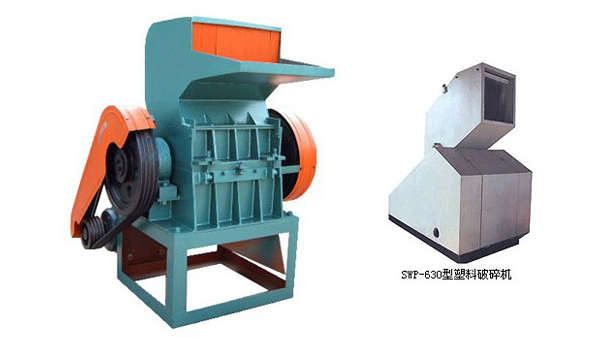

It is mainly used for breaking relatively long PVC special shaped material, such as plastic door & window, plastic pipe, sheet, etc. there is no need to cut. Once continuous feeding can be conducted. Internal design is rather distinct.It is a new kind of breaking machine used for breaking plastic profiled material with large hardness and tenacity. Wind motor is arranged for transport of broken material, start-up device is arranged. The operation and maintenance & repair are rather simple. It is an ideal model for breaking all sorts of pipe material and profiled material.
Technical parameter:
Model | SWP300 | SWP400 | SWP600 | SWP800 |
Capacity | 300kg/h | 400kg/h | 600kg/h | 800kg/h |
Fixed blade quantity | 2 | 2 | 2 | 2 |
Rotate bade quantity | 12 | 12 | 18 | 24 |
Screen hole size | 8 | 10 | 10 | 10 |
Feed inlet size | 280*320 | 320*450 | 380*600 | 400*800 |
weight (kg) | 1400 | 1600 | 1800 | 2000 |
Remark: if above mentioned parameter changed, forgive us won’t notify.
