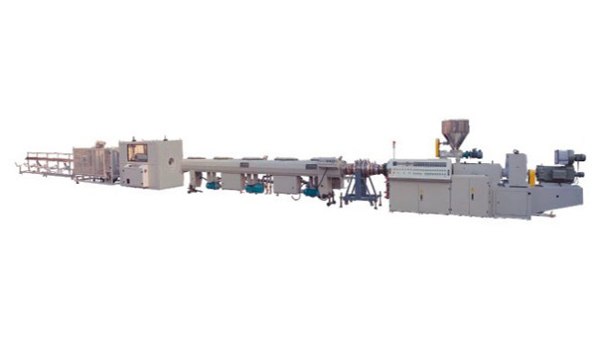

PVC pipe production line
PVC pipe production line
This
kind of PVC pipe has features of good flexibility, easy molding,
non-toxic, non-polluting, it is a preferred gas and water pipe for
ductwork system.
Main technical parameters:
| Model/parameter | Pipe diameter Range (mm) | Extruder model | Producing speed of line (m/min) | Max. output (kg/h) | Total installed power (Kw) | Overall dimension L×W×H (m) |
| FPVCG-63 | Ø16-Ø63 | FSJSZ-51/105 | 1-12 | 120 | 65 | 30×1.8×2.0 |
| FPVCG-160 | Ø75-Ø160 | FSJSZ-65/132 | 0.5-5 | 260 | 105 | 36×2.0×2.0 |
| FPVCG-250 | Ø90-Ø250 | FSJSZ-80/156 | 1-3.6 | 400 | 145 | 37×2.0×2.0 |
| FPVCG-400 | Ø200-Ø400 | FSJSZ-80/156 | 0.1-1 | 350 | 180 | 40×2.5×2.5 |
| FPVCG-630 | Ø400-Ø630 | FSJSZ-92/188 | 0.08-0.8 | 700 | 245 | 48×2.5×2.5 |
