SJSZ80 Plastic PVC WPC Cabinet Crust Skinning Freedom Foam Foaming Furniture Sheet Board Extrusion Making Machine

PRODUCTS > Plastic Plate/Board Production > SJSZ80 Plastic PVC WPC Cabinet Crust Skinning Freedom Foam Foaming Furniture Sheet Board Extrusion Making Machine

SJSZ80 Plastic PVC WPC Cabinet Crust Skinning Freedom Foam Foaming Furniture Sheet Board Extrusion Making Machine

    • 1
    • 2
    • 3
    • 4
    • 5
    • 6

elated Extrusion Machine
Product Description


PVC Skinning Foam Board Chevron WPC Solid Thick Train Car Roof Plastic Extruder Making Machine

1.Characteristic:
compact structure, good plasticization, high output and long working life. Special design conical twin-screw extruder or parallel twin-screw extruder.

2. Main list:

1
Wood powder making machine
1 set
2
Mixer machine
1 set
3
WPC PVC Foam board exrtusion line
1 set
5
WPC PVC Foam board surface treatment machine
1 set
6
WPC Pulveriser machine
1 set
7
Crusher
1 set
PVC profile machine

Process flow:


Wood powder making machine→Mixer machine→WPC PVC Foam board exrtusion line→WPC PVC Foam board surface treatment machine (Paint printing, Filming and Hot pressing equipment)

WPC PVC Skinning Foam Board Extrusion Line:
1
automatic feeding system
1 set
2
conical double screw extruder
1 set
3
PVC foam board mould. thickness :5-40mm
1 set
4
calibration table
1 set
5
haul off machine
1 set
6
cutter
1 set
7
automatic final product bracket
1 set
Conical twin screw extruder Mould
Calibration and cooling tableHaul off machine
Cutting machineStacker

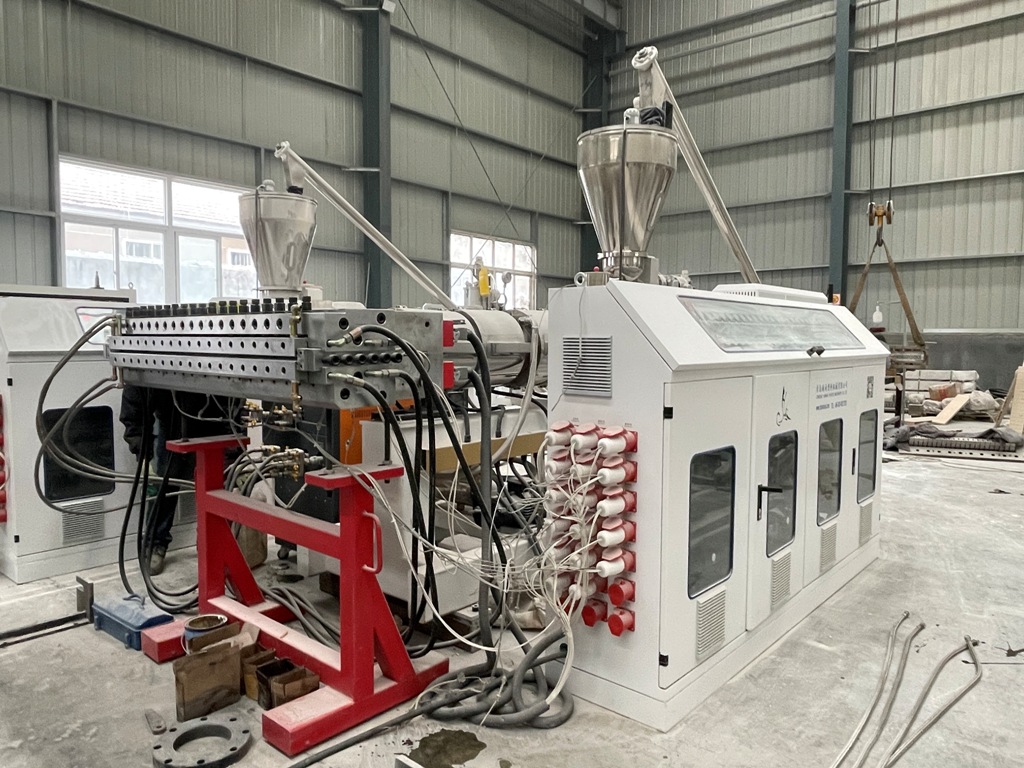

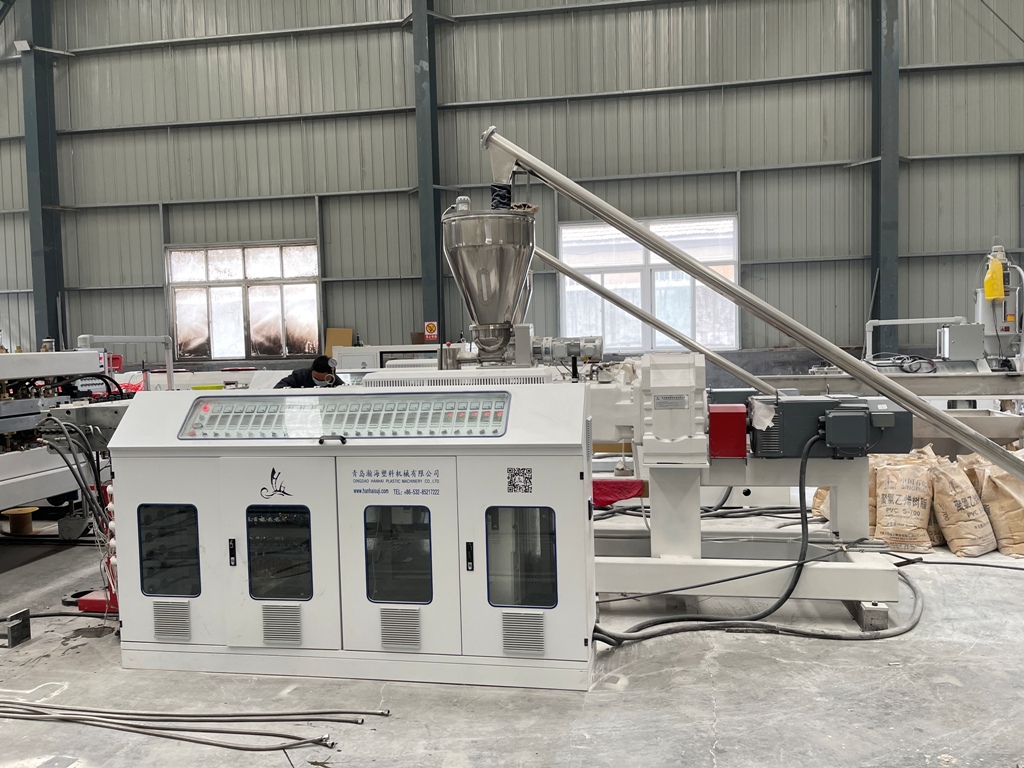

Conical twin screw extruder
(with automatic feeding system)
(1) Motor: Siemens
(2) Inverter: ABB/Delta
(3) Contactor: Siemens
(4) Relay: Omron
(5) Breaker: Schneider
(6) Heating method: Cast aluminum heating
(7) Material of screw and barrel: 38CrMoAlA.
Mold
(1) Material: 40GR
(2) Size: Customized

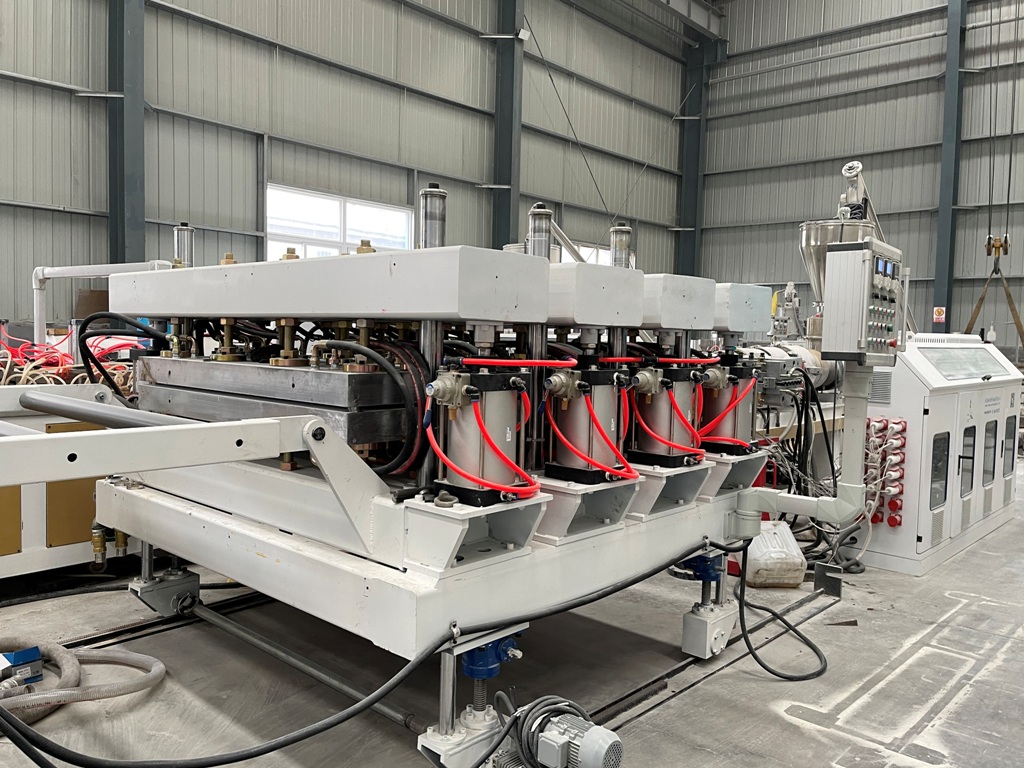

Vacuum calibration and cooling table
(1) Material: Stainless steel
(2) Method: Enforced spraying
(3) Diameter: Customized
(4) Length: 6 m

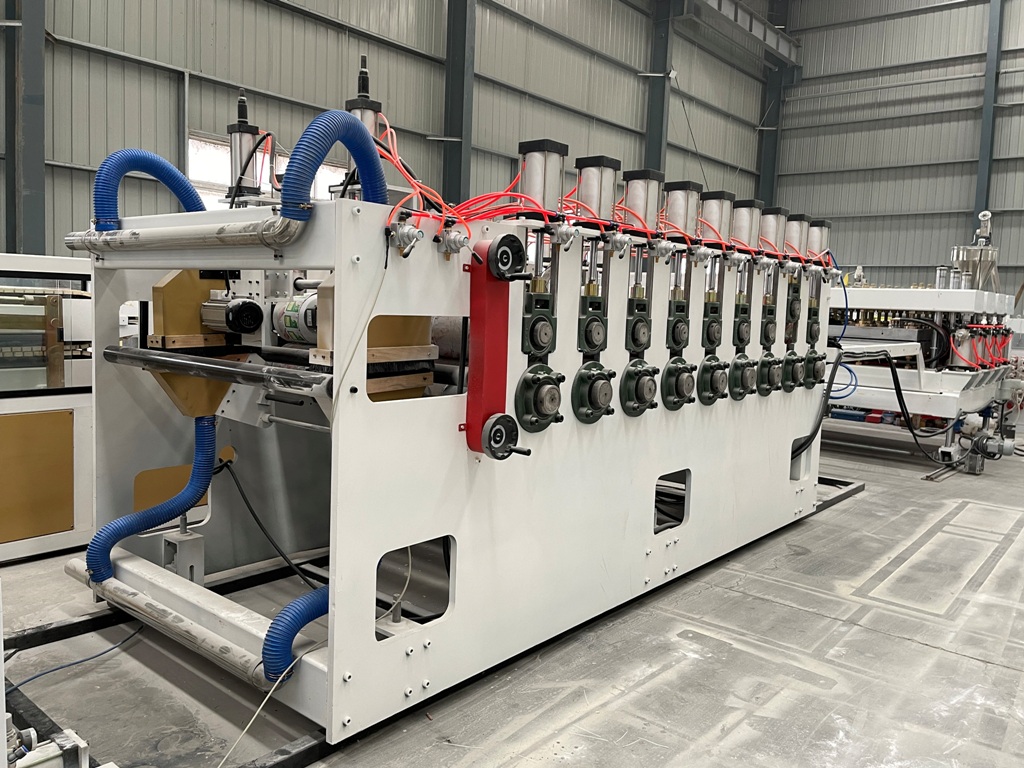

 Haul off machine
(1) Driving motor power: 2.2 kw
(2) Transducer: Siemens transducer
(3) hauling track type：110 plastic block
(4) Pressing method:Pneumatic pressing
Cutting machine
(1) Motor power: 3 kw
(2) Method: Saw cutting
(3) Cutting scope: Customized
(4) PLC control system, using meter counter or sensor switch for the setting            of desired length.
Stacker
(1) Material: Stainless steel
(2) Unloading method: Pneumatic unloading
Model
Production width
Production thickness
Extruder model
Capacity (Max.)
Main motor power
Semi-skinning foaming board extrusion line
1220mm
1560mm
2050mm
5-20mm
8-18mm
8-15mm
SJZ80/156
SJZ92/188
SJZ92/188
400kg/h
550kg/h
550kg/h
75kw
132kw
132kw
Core foaming board extrusion line
1220mm
5-20mm
SJZ80/186+
SJZ65/132
500kg/h
75kw+37kw

Product advantages:


1.High Intensity: service life of more than 30 years.
2.water proof and fire proof:the content of PVC material
3.Rot Resistance: suitable for different climates, every occasion.
4.Heat insulation: the hollow structure
5. noisy insulation: the inner is hollow shape
6.no harm to people health: the PVC melted in high, it jointed with wood powder without using glue.
7.100% recyclable: the WPC door can be 100% recyclable to be used for making new WPC products.
Final products
