PVC HDPE Single Wall Reiforced Corrugated Electical Conduit Pipe Making Machine

PRODUCTS > Plastic pipe production line > PVC HDPE Single Wall Reiforced Corrugated Electical Conduit Pipe Making Machine

PVC HDPE Single Wall Reiforced Corrugated Electical Conduit Pipe Making Machine

Product details

Plastic PE PP Single Wall Corrugated Pipe Making Machine Extrusion Line

NO.	Specification	Quantity
1	Single-screw extruder with automatic loading device	1set
2	Mould	1set
3	Corrugated forming machine	1set
4	Haul-off machine	1set
5	Chipless cutting machine	1set
6	Two stations winding machine	1set
7	Perforator (optional)	1set
8	Laminating machine (optional)	1set

Production Description:

PE PP HDPE corrugated pipe production line:You just tell me what machine you want，let us do the rest work:
1. Design and manufacture suitble machine for you.

2. Before delivery, we will test the machine until you are completely satisfied. (You can come to   our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/Online technical support.

Techical Parameters:
1.PE PP HDPE corrugated pipe production line:Single-screw extruder with automatic loading device：
According to the requirements of different diameters and different output of pipes, we have many models of special single screw extruders to choose from. It adopts a specially designed screw structure, which can evenly heat, plasticize the raw material and extrude pipes .
(1) Motor brand: Siemens
(2) Inverter brand: ABB or Delta
(3) Contactor brand: Siemens
(4) Relay brand: Omron
(5) Breaker brand: Schneider
(6) Material of screw and barrel: 38CrMoAlA.
(7) Heating method: Ceramic heating
2. PE PP HDPE corrugated pipe production line:Mould：
The mould is made of high-quality alloy steel, the internal flow channel is chrome-plated and highly polished, which is wear-resistant and corrosion-resistant; With the special sizing sleeve, the product production speed is hight and the surface of the pipe is good.(1) Material: 40Cr and nitrided.
(2) Size: Customized

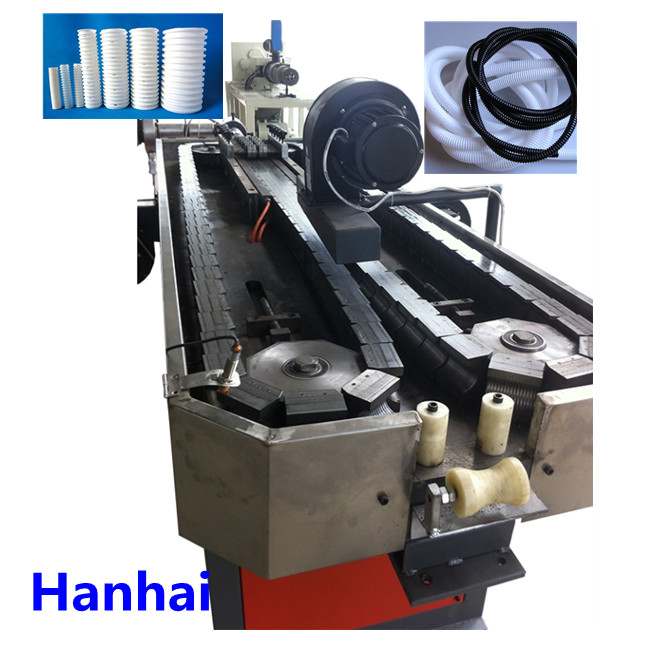

3.PE PP HDPE corrugated pipe production line:Corrugated forming machine：
The corrugated formig device can calibrate and cool the pipe from the mould.(1) Structure	Horizontal.
(2) Guide track material is 40Cr.
(3) Block seat material is 40Cr, nitrided.
(4) AC motor: 2.2KW x 1 set.
(5) Blocks is cooled by air cooling fan.
4.PE PP HDPE corrugated pipe production line:Haul-off machine
The haul-off machine can transport pipe.(1) Hauling track type: Belt.
5.PE PP HDPE corrugated pipe production line:Chipless cutting machine：
The special cutting machine adopts rotary clamping device, is suitable for different pipe diameters, avoids the trouble of frequently changing clamping device.(1) Cutting scope: Customized
(2) Control means: Pneumatic control
6.PE PP HDPE corrugated pipe production line:Two stations winding machine：
It uses the delicate and exact meter counting and code setting unit made in Korea.(1) Two stations automatic winding unit without stopping.
(2) Torque Motor:4-6N/M or customizable.
7.PE PP HDPE corrugated pipe production line:Perforator
t can perforate the pipe according to customer needs.
