PRODUCTS > Auxiliary equipment > Vacuum cooling spray water tank and cooling

Vacuum cooling spray water tank and cooling

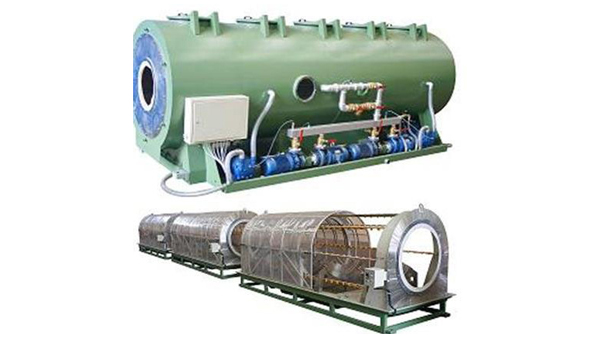

PVC PP PE PPR pipe vacuum cooling tank

1
Calibrator boxTwin chambers vacuum
4
Quantity of vacuum pump
2 sets
5
Power of vacuum pump(kw)
6
Quantity of water pump2 units
7
Power of water pumps(kw)
8
front-behind move power(kw)
0.75KW
9
front-behind move distance800mm
10
Front-behind move methodScrew transmission
11
Left-right move range±40mm
12
Center height1050±50mm
13
materialStainless steel
14
Plates thickness3mm
15
Top cover materialCast aluminium
16
Cooling methodspray
17
Cooling mediumCooling water
18
Quantity of spray pipeFront-end 6PCS,back-end 4PCS
19
Spary nozzle specification and mode1”× 4-3
20
Quantity of cycling water-using filtrator2 PCS
21
Specification of cycling water-using filtrator2 inches
22
Trusteeship methodCarrier roller
23
Electric sectionSchneider
24
Inside firmware and structure materialStainless steel
25
Inside water suface height controling methodFloating ball,radiotube,temprature control
26
In-water pipe diameter(inches)±1.5”
27
Out-water pipe diameter(inches)1”
28
Cabinets outside shapepolygon
