PVC board extrusion line with price

PVC board extrusion line with price

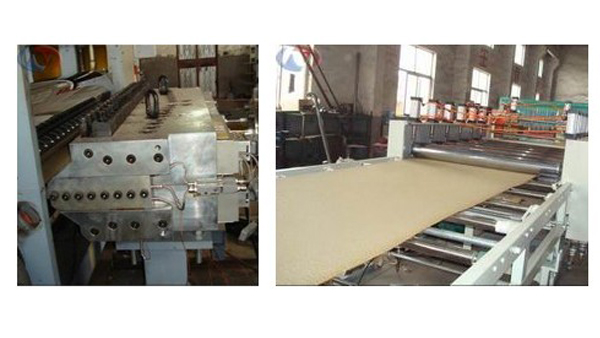

PVC celuka foam board machine

it adopts Celuka foaming technology. Compared with PVC free foaming board, plastic celuka foam board not only has much more smooth surface, but also the hardness is better. In addition, mechnics performance of Celuka foam board is better than that of free foaming board, PVC Celuka foam board extrusion line is composed of conical twin-screw extruder, die, vacuum calibration unit, haul-off unit and so on. Our company can provide the formula and all the processing techniques. The machine has the features of high output, stable extrusion, high foaming, smooth and wearable surface. By equipping with the printing machine, laminating machine or hot stamping machine, this machine can produce different kinds of artificial wood products, so that this machine has a very wide application range.
plastic machine
The machine Type
1. SMF-400Miller SMF-400 1 set
2. SHRL-Z500/1000A High-speed Heat/Cooling mixing machine SRL-Z500/1000A 1 set
3. ZJF500 Automatic feed loader ZJF500 1 set
4. SJSZ80/156 Extrude SJSZ80/156 1 set
5. Mould 1 set
6. Calibration platform ZKDX-1220 1 set
7. Bracket TJ-2000 1 set
8. Haul off machine SLQ -1220 1 set
9. Through cutter 1 set
10. Cross cutter HQG-1220 1 set
11. Stacker BFL-1220 1 set
12. Crusher SWP360 1 set

Eletrical Part
1. Main motor frequency controller: ABB
2. Temperature controller: OMRON or RKC
3. AC controller: Schneider or simens
4. Thermal overload relay: Schneider

Thickness (mm)
1mm to 20mm
Width (mm)
1220,1560
Length (mm)
2440,3050
Standard Color
White
Density (g/cm3)
0.45 – 0.8
Pulling strength(MPa)
12-20
Bending strength(MPa)
12-18
Elastic modulus in bending (MPa)
800-900
Impact strength (KJ/m2)
8-15
Breaking elongation (%)
15-20
Vicat softening point
73-76°C
Shore hardness
45-50
Water absorbing capacity (%)
≥1.5
Flame retardancy
The self-extinguishing time away from the flame is less than 5 seconds
